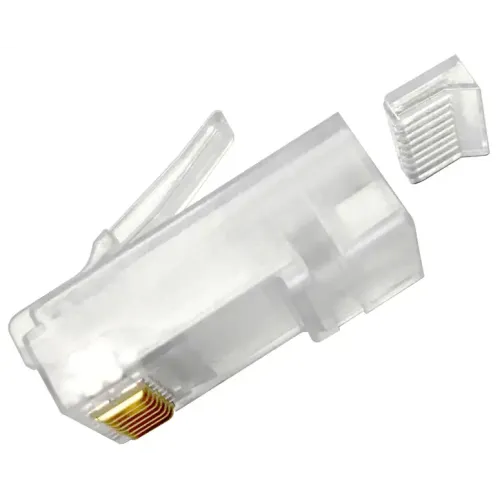

CommScope 6-2843007-1 CAT 6/6A RJ45 Connector

CommScope 6-2843007-1 CAT 6/6A RJ45 Connector

The CommScope 6-2843007-1 CAT 6/6A RJ45 Connector is a high-quality modular connector designed to meet both Category 6 and Category 6A networking standards, making it ideal for high-speed data transmission applications. This adaptable connector can be used with unshielded round cables and supports both stranded and solid conductor types, meeting a range of installation needs. Its sturdy and dependable connectivity is ensured by its RJ45 interface, which has eight positions and eight loaded contacts. The IDC termination type improves the network's overall performance by enabling safe and effective terminations. Cable selection is versatile with the CommScope 6-2843007-1 RJ45 Connector, which accommodates insulated conductor diameters ranging from 0.89 mm to 1.09 mm (0.035 to 0.043 inches). With a contact plating thickness of 1.27 µm, long-lasting and steady contacts are guaranteed. It offers broad compatibility with a variety of cable types and is compatible with conductor gauges ranging from 26 to 23 AWG for both solid and stranded wires. This connector guarantees safe and dependable electrical performance with a minimum insulation resistance of 500 mOhm and a maximum current rating of 0.75 A. With a safety voltage rating of 150 Vac, the CommScope 6-2843007-1 CAT 6/6A RJ45 Connector is appropriate for a range of networking settings. Phosphor bronze, the contact base material, is renowned for its exceptional conductivity and longevity, whilst gold, the contact plating substance, offers higher corrosion resistance and improves signal quality. Glass-filled polycarbonate, a sturdy material that guarantees long-lasting performance and endurance in severe environments, is used to make the CommScope 6-2843007-1 CAT 6/6A RJ45 Connector.
