| Specifications | Descriptions |
|---|---|
| Rectangular notch weir | Min. depth 95-100 mm, min. width 25-30 mm |
| V notch weirs | One of min. depth 95-100 mm, min. notch angle 20°-30° and One of min. depth 95-100 mm, min. notch angle 80°-90° |
| Cipoletti (Trapezoidal) notch weir | Min. depth 95-100 mm, min. width at top of notch 25-30 mm, min. width at base of notch 20-25 mm, min. thickness 2-3 mm |
| Linear head/flow (proportional) notch weir | Min. thickness 2-3 mm, min. depth 85-88 mm Channel dimensions: Approx. 22.8 cm x 17.8 cm x 30.5 cm |
| 3 x basic weirs | Rectangular, 30° and 90° V-notch; 2 x advanced weirs: Cipoletti and linear head/flow; Depth Gauge, Silicon grease; Tubing, Pipe clips; |
The Discharge over a Notch apparatus shows clearly the use of weirs as simple flow regulators. It works with and fits on the top of TecQuipment’s Digital Hydraulic Bench (H1F, available separately).
It allows students to do tests on relationships between upstream water level and weir discharge for various different shaped notches. They can then compare their results with theory.

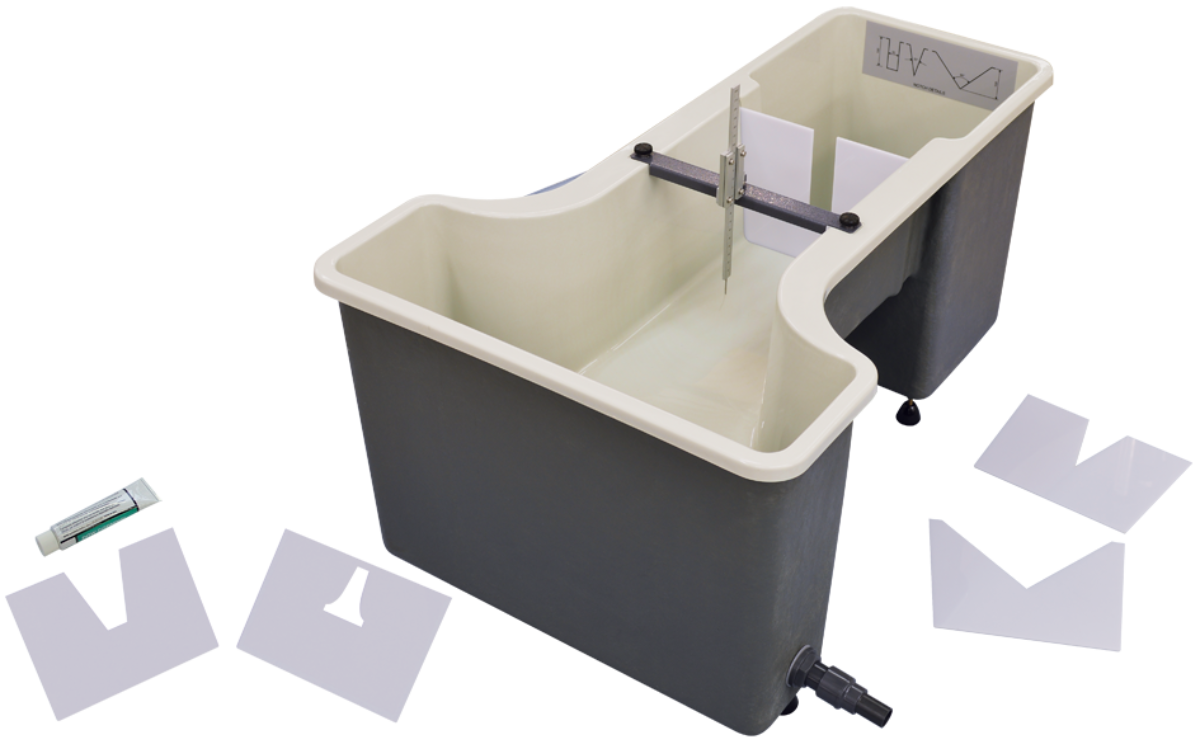

The equipment is a moulded tank, the middle section of which forms a channel. One end of the tank is wide; the other end is deeper than the rest of the tank. Each weir fits in a sealed groove in the channel section. Plastic materials and corrosion-resistant finishes protect against corrosion. The hydraulic bench supplies water to the wide end of the tank. Water flows through the channel and over the weir, where the deep tank exit allows students to see the discharge. Students measure the free water surface using an adjustable depth gauge attached to a beam across the channel. The tank outlet fits on the hydraulic bench (available separately).
The equipment includes two different V-notch weirs and a rectangular notch weir. To do experiments, students regulate the flow using the hydraulic bench. They note the value of discharge and head, and reduce the flow. They repeat the readings for equal decrements in head, until the stream no longer springs clear of the notch. From their results they plot graphs of discharge rate against head, and also the logs of each.
