| Price: | |
| Regular Price: | ৳0.00 |
| Status: | In Stock |
| Product Code: | 9tVa09q5vF |
| Brand: |
| Specifications | Descriptions |
|---|---|
| Front loading oedometer | BS 1377, ASTM D2435 |
| Lever arm ratios | 9:1, 10:1 and 11:1 |
| Oedometer bench to accept | up to three odometers |
| Fixed ring cell diameter | 50.47mm |
| Calibration disc diameter | 50.47mm |
| Dial gauge | 12 mm x 0.002 mm |
| Set of slotted steel weights | 64kg: 2x0.25; 1x0.5; 1x1; 1x2; 1x4; 7x8kg |
| Warranty | 1 Year |

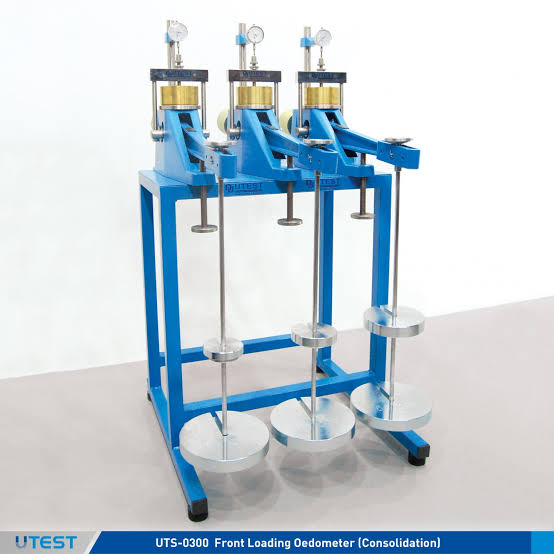

The Oedometers, Front Loading test determines the rate and magnitude of consolidation of a soil specimen restrained laterally and subjected to several successive increments of vertical loads. The oedometer consists of a rigid aluminum alloy frame to avoid any distortion under load.
