| Price: | ৳1,650,000.00 |
| Regular Price: | |
| Status: | In Stock |
| Product Code: | mmPB5IzO8s |
| Brand: |
| Specifications | Descriptions |
|---|---|
|

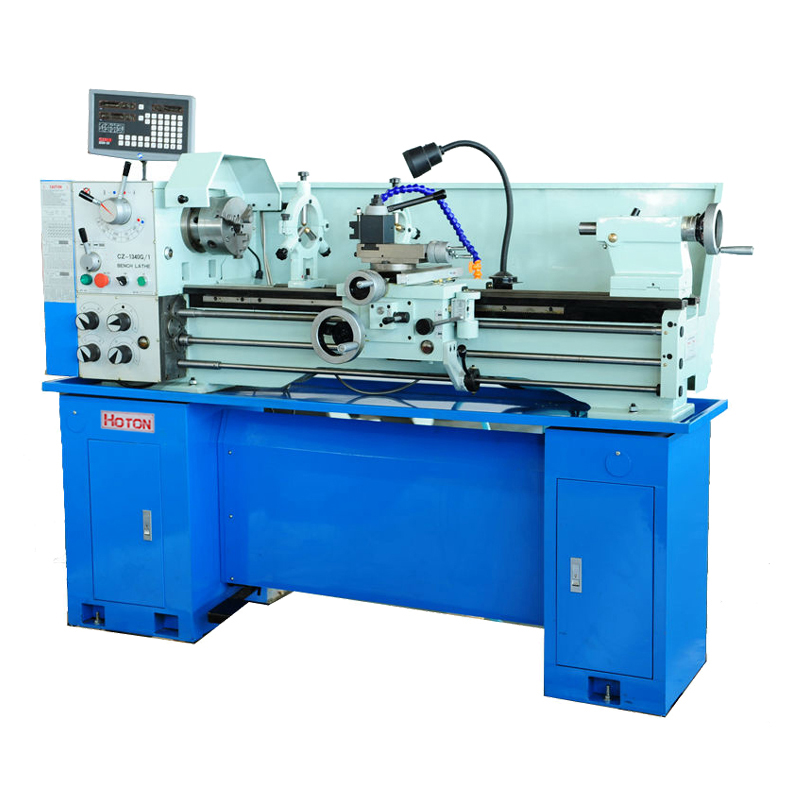

BENCH
LATHE |
CZ1340G/1
CZ1440G/1 |
|
|
Main
data |
Swing
over bed |
φ
330mm / φ 355mm |
|
Swing
over carriage |
φ
195mm / φ 220mm |
|
|
Swing
over gap |
φ
476mm / φ 500mm |
|
|
Width
of bed-way |
186mm |
|
|
Distance
between centers |
1000mm |
|
|
|
|
|
|
Spindle |
Taper
of spindle |
M.
T. 5 |
|
Spindle
diameter |
φ
38mm |
|
|
Step
of speed |
8
Steps |
|
|
Range
of speed |
70-2000
rpm |
|
|
Head |
D1-4 |
|
|
|
|
|
|
Thread
and feed system |
Metric
thread |
26kinds
(0.4~7mm) |
|
Inch
thread |
34kinds(4~56T.
P. I) |
|
|
Module
thread |
16
kinds(0.35~5M. P) |
|
|
Diametral
thread |
36
kinds(6~104D. P) |
|
|
Longitudinal
feeds |
0.052~1.392mm
(0.002" ~0.0548" ) |
|
|
Cross
feeds |
0.014~0.38mm
(0.00055" ~0.015" ) |
|
|
|
|
|
|
Main
lead screw |
Diameter
lead screw |
φ
22mm(7/8" ) |
|
Pitch
of lead screw |
3mm
or 8T. P. I |
|
|
|
|
|
|
Saddle
and carriage |
Saddle
travel |
1000mm |
|
Cross
travel |
170mm |
|
|
Compound
travel |
74mm |
|
|
|
|
|
|
Tailstock |
Barrel
travel |
95mm |
|
Barrel
diameter |
φ
32mm |
|
|
Taper
of center |
M.
T. 3 |
|
|
|
|
|
|
Power |
Motor
power |
1.5KW
(2HP) |
|
Motor
for coolant system' s power |
0.04KW
(0.055HP) |
|
|
|
|
|
|
Shipment
data |
Machine(L×
W× H) |
1920×
760× 760 (mm) |
|
Stand(left)
(L× W× H) |
440×
410× 700 (mm) |
|
|
Stand
(right)(L× W× H) |
370×
410× 700 (mm) |
|
|
Machine |
510/565
(kgs) |
|
|
Stand |
70/75
(kgs) |
|
|
Loading
qauntity/20" container |
22
pcs |
|
