| Price: | ৳550,000.00 |
| Regular Price: | |
| Status: | In Stock |
| Product Code: | borx0YG5L0 |
| Brand: |
| Specifications | Descriptions |
|---|---|

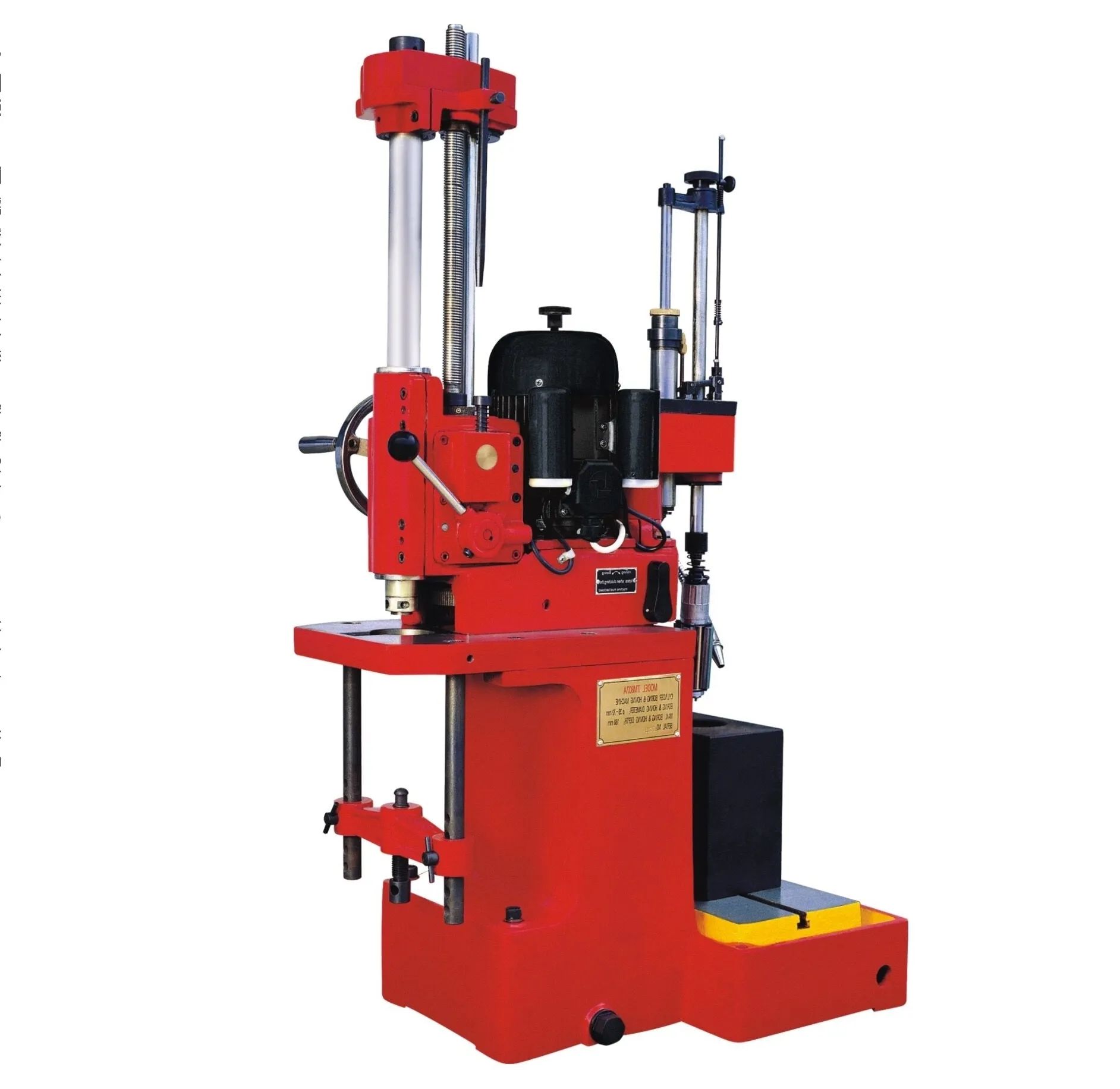

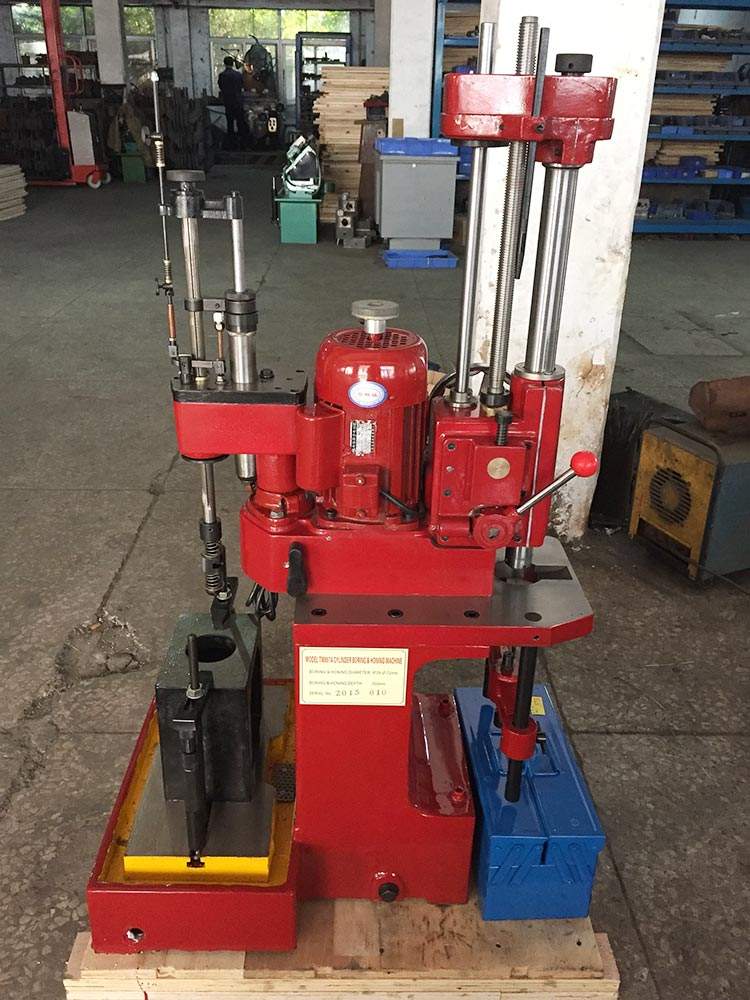

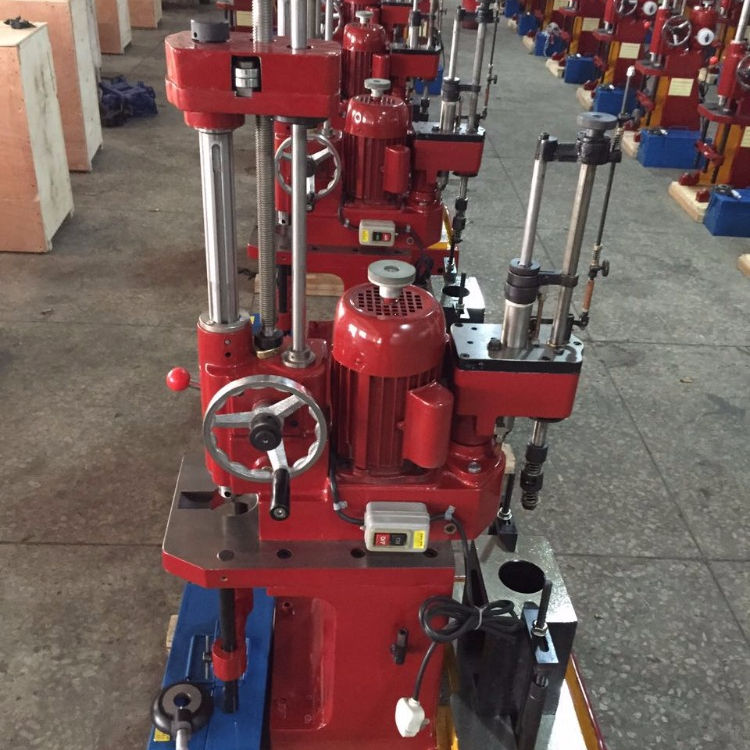

TM807A cylinder boring machine for motor cycle and honing machine Feature : This machine is mainly used for maintaining the cylinder of motorcycle,etc.Place the cylinder to be bored under the base plate or on the plane of the base of the machine after the center of the cylinder hole is determined,and the cylinder is fixed,maintenance of boring and honing can be carried out.If the suitable fixture are fitted ,other cylinder bodies with corresponding requirements can also be bored and honed.
TM807A, Boring & honing dia-39-72mm,
Max Boring & honing depth- 160mm,
Boring Spendle speed-480 speed-300 R/min,
Power- 250watt, Motor rpm- 1400. Volt- 220/380v,
Install With all Accessories.
|
Specification |
Unit |
TM807A |
|
Diameter of boring & honing hole |
mm |
39-72 |
|
Max. boring & honing depth |
mm |
160 |
|
Rotation speed of boring & spindle |
r/min |
480 |
|
Steps of variable speed of boring & honing spindle |
|
1 step |
|
Feed of boring spindle |
mm/r |
0.09 |
|
Return and rise mode of boring spindle |
|
Hand operated |
|
Rotational speed of honing spindle |
r/min |
300 |
|
Honing spindle feeding speed |
m/min |
6.5 |
|
Electric motor power |
kw |
0.75 |
|
Electric motor rotational |
r/min |
1400 |
|
Electric motor voltage |
V |
220/380 |
|
Electric motor frequency |
HZ |
50 |
|
Overall dimension |
mm |
680x480x1160 |
|
Packing size |
mm |
820x600x1275 |
|
N.W/G.W |
kg |
230/280 |
